Walka RL Mjlab: Bipedal Locomotion via Reinforcement Learning

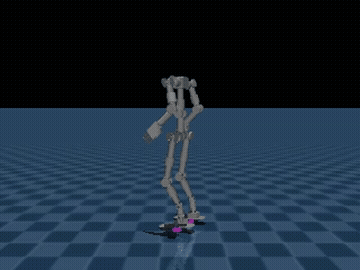

Walka-Flat: Stable Forward Walking

Trained on a flat ground for 10,001 iterations with 4096 parallel environments (~1h54m on a rented RTX 4090). The policy learns a stable, rhythmic gait that tracks commanded forward velocity while maintaining balance and avoiding foot slip.

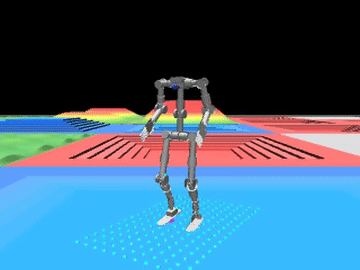

Walka-Rough: Terrain Curriculum Navigation

Trained on a procedurally generated terrain curriculum mixing seven sub-terrain types (stairs, slopes, random rough, wave, etc.) for 9,900 iterations with 2048 environments (~4h33m). The policy adapts its gait to varying ground conditions, lifting feet higher over obstacles and adjusting stride length.

The training loop runs entirely in MuJoCo via mjlab, following a manager-based architecture where observations, actions, rewards, and terminations are composed from independent, typed terms. Each training iteration collects 24 steps of rollout per parallel environment, computes GAE advantages, and updates a 3-layer (128, 128, 64) ELU actor-critic with PPO's clipped-surrogate objective.

1. Task Setup & Command Sampling

Every episode begins with a randomized velocity command sampled from ranges that widen over the course of training via Curriculum/command_vel. Forward velocity lin_vel_x starts narrow at (-1, 1) m/s and widens to (-2, 3) m/s by iteration 240,000 steps; yaw rate ang_vel_z widens from ±0.5 to ±0.7 rad/s over the same schedule. The robot's initial joint configuration is also randomized (default posture ± 0.1 rad per joint) so the policy never sees identical start conditions twice.

2. Observation & Action Spaces

The policy observes noisy actor-group data: joint positions and velocities (uniform noise ±0.01 rad, ±0.1 rad/s), base angular velocity (±0.2 rad/s), projected gravity, the commanded twist, a gait-phase clock, and the last action. The critic sees clean, privileged observations plus base linear velocity (not available in the real world). Actions are joint-position offsets around a default standing posture, applied as PD targets in MuJoCo at each simulation step.

3. Reward Shaping

Sixteen reward terms guide the learned behavior. The two task-tracking terms (track_linear_velocity and track_angular_velocity, combined weight 4.0) reward matching the commanded twist. All other terms are shaping: upright keeps the pelvis level, pose regularizes joint angles toward default, foot_gait encourages alternating stance/swing rhythm, foot_clearance and foot_swing_height shape foot trajectories, and penalties discourage self-collision, joint limits, foot slip, and jittery actions. Every term's weight and effect is documented in Reward Design below.

4. PPO Update & Hyperparameters

After 24 steps of rollout, generalized advantage estimates (GAE, γ=0.99, λ=0.95) are computed and the policy updates via PPO with ε=0.2 clip, 5 epochs over 4 minibatches, and adaptive learning rate (starts at 1e-3, adjusts to keep KL divergence near 0.01). The actor and critic share hidden layers (128, 128, 64) with ELU activations; observations are normalized via running statistics updated during training.

5. Training on Rented GPUs

Both Walka-Flat and Walka-Rough were trained on rented vast.ai RTX 4090 instances. The workflow — instance selection, environment setup, W&B tracking, checkpoint promotion criteria, and Hugging Face Hub publishing — is documented in docs/vast_ai_training.md. Training produces rolling checkpoints logged to W&B (saved every 1000-1500 iterations to stay within artifact-storage quotas), and promoted checkpoints are archived permanently to Hugging Face Hub via scripts/push_to_hub.py.

The Walka-Rough task trains on ROUGH_TERRAINS_CFG, a curriculum grid mixing seven procedurally generated sub-terrain types. Each type presents different locomotion challenges: discrete height steps, continuous slopes, random bumps, or sinusoidal waves. The trained policy learns to adapt its gait to all of them — lifting feet higher on stairs, adjusting stride on slopes, and maintaining balance over uneven ground.

Below are isolated terrain demos: the same Walka-Rough checkpoint played back on individual terrain types with a forced forward command (--forward-speed 0.7), demonstrating the policy's adaptive behavior.

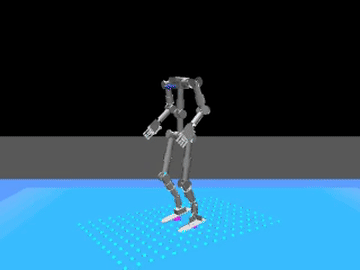

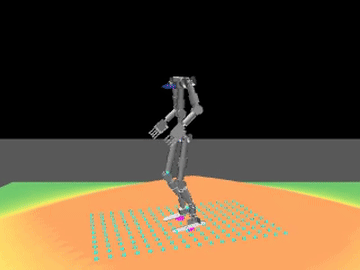

pyramid_stairs — discrete height steps	hf_pyramid_slope — continuous incline/decline

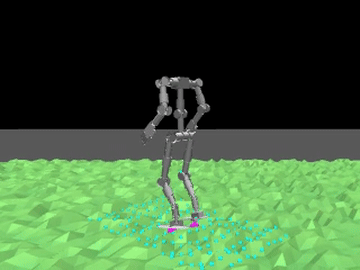

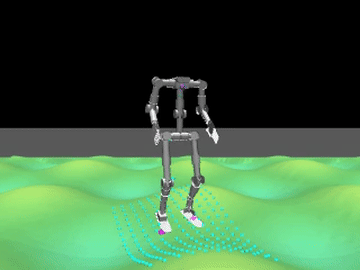

random_rough — random height bumps	wave_terrain — sinusoidal rolling waves

The curriculum's difficulty progression — flat platforms at the start, gradually denser/taller obstacles — allows the policy to bootstrap from simpler terrain before facing the hardest challenges. This shaping is critical: training on a uniform distribution of all terrain types from iteration zero often fails to converge to any stable gait.

Sixteen reward terms shape the learned gait. Every term is computed at every simulation step and summed as Σ weighti × termi(env). The table below lists each term's weight, kind (bonus or penalty), and one-line purpose; full mathematical formulations and detailed commentary are in docs/reward_design.md.

Term	Weight	Kind	Purpose
track_linear_velocity	2.0	bonus	Match commanded forward/lateral velocity
track_angular_velocity	2.0	bonus	Match commanded yaw rate
upright	1.0	bonus	Keep pelvis level
pose	1.0	bonus	Stay near default joint angles, tolerance scales with speed
foot_gait	0.5	bonus	Match a fixed alternating stance/swing clock
dof_pos_limits	-1.0	penalty	Stay inside soft joint limits
self_collisions	-1.0	penalty	Avoid self-contact above 10N
stand_still	-1.0	penalty	Hold default pose when no command is active
foot_clearance	-2.0	penalty	Lift feet to target height during swing
foot_swing_height	-0.25	penalty	Hit target peak swing height at landing
action_rate_l2	-0.1	penalty	Smooth actions (discourage jitter)
foot_slip	-0.1	penalty	No foot sliding while in contact
soft_landing	-1e-5	penalty	Soft footfalls (tiny weight, mostly observational)

Three additional terms (body_ang_vel, angular_momentum, air_time) are wired into the reward manager but assigned zero weight — they remain inactive, available for future ablation studies or gait variations (e.g., running vs. walking). The current weights produce the stable walking gait seen in the training demos above; different weight combinations can bias the policy toward other behaviors (faster forward speed at the cost of stability, more aggressive turning, etc.).

• reward_design.md — full mathematical definitions and detailed commentary for all sixteen reward terms, with per-term contribution analysis and ablation notes
• vast_ai_training.md — step-by-step workflow for training on rented vast.ai RTX 4090 GPUs: instance selection, W&B tracking, checkpoint promotion criteria, and Hugging Face Hub publishing
• kinematic_structure_analysis.md — kinematic chain breakdown, joint naming conventions, and MJCF parsing notes for the Walka robot description
• get_up_task.md — design notes for a fallen-recovery task (not yet implemented): reward formulation, termination conditions, and training strategy for getting the robot back to standing after a fall

Clone the repository:

git clone https://github.com/thanhndv212/walka_rl_mjlab.git
cd walka_rl_mjlab

Install dependencies with uv. For CPU-only (dev machines without a GPU):

make sync-cpu   # or: uv sync --extra cpu --group dev

For GPU training (CUDA 12.8):

make sync       # or: uv sync --extra cu128 --group dev

Usage Examples

# List all registered tasks.
uv run python scripts/list_envs.py

# Train a policy (swap Walka-Flat for Walka-Rough to train on terrain).
uv run python scripts/train.py Walka-Flat --env.scene.num-envs=4096

# Play back a trained checkpoint in the viewer.
uv run python scripts/play.py Walka-Flat \
    --checkpoint-file logs/rsl_rl/walka_velocity/DATE/model_N.pt

# Steer it yourself (native viewer only): W/S fwd-back, J/L strafe, Q/E turn, X stop.
uv run python scripts/play.py Walka-Rough \
    --checkpoint-file logs/.../model_N.pt --keyboard-steer

# Record a demo clip on one terrain type, walking forward off the spawn platform.
uv run python scripts/play.py Walka-Rough \
    --checkpoint-file logs/.../model_N.pt \
    --terrain random_rough --forward-speed 0.7 --video --no-terminations

# Publish a promoted checkpoint to the Hugging Face Hub.
uv run python scripts/push_to_hub.py \
    --repo-id <user>/walka-velocity-flat \
    --wandb-run-path <entity>/<project>/<run_id>

No local GPU needed for playback or visualization — see vast_ai_training.md for the full rented-GPU workflow (instance selection, monitoring, promotion bar, Hugging Face Hub publish).

• unitree_rl_mjlab — this repo's task and script structure mirrors it, and the gait-clock phase observation and feet_gait/stand_still rewards are ported from its local velocity-task fork.
• mjlab — the manager-based RL framework powering the task setup, observation/action/reward/termination composition, and MuJoCo integration.
• RSL-RL — PPO implementation used for all training runs, with adaptive learning rate and GAE advantage estimation.
• Robot design files — MJCF model (walka.xml) and mesh assets for the Walka humanoid, in-repo at src/assets/robots/walka/.
